OVERVIEW

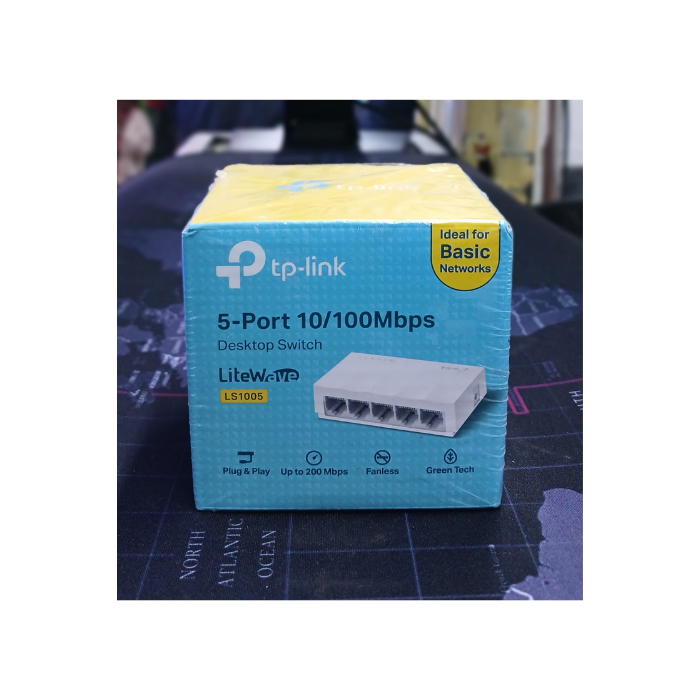

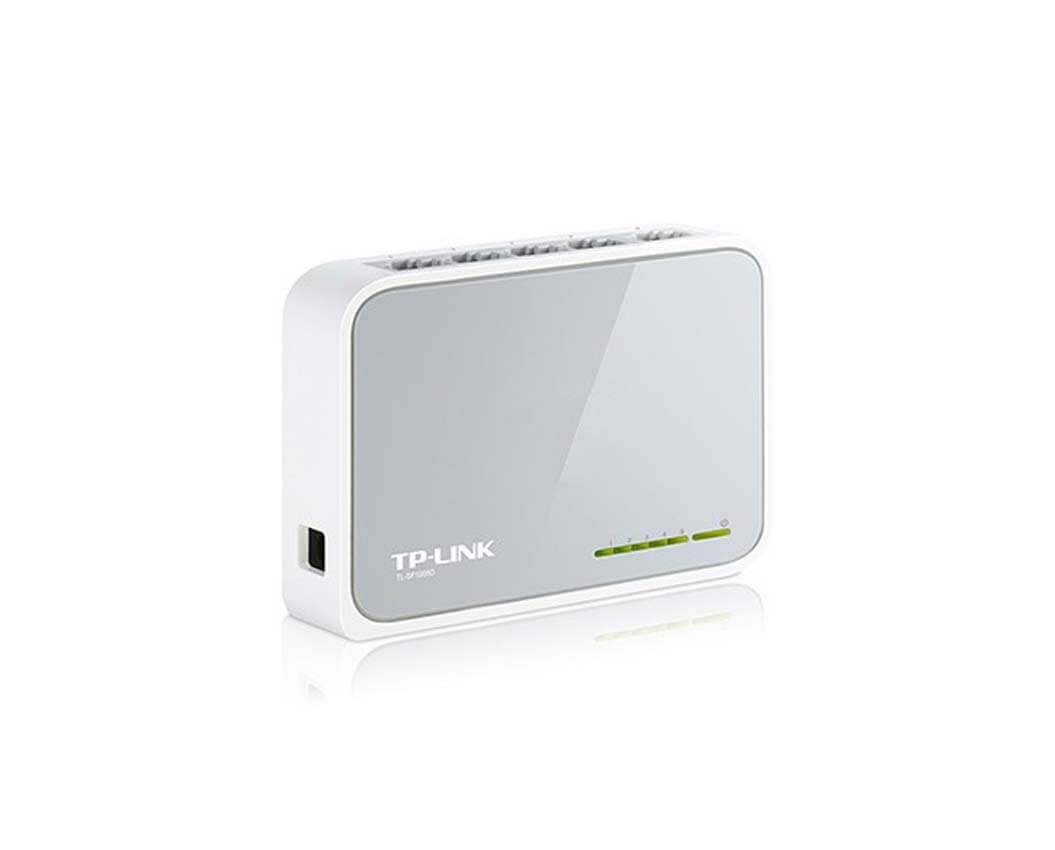

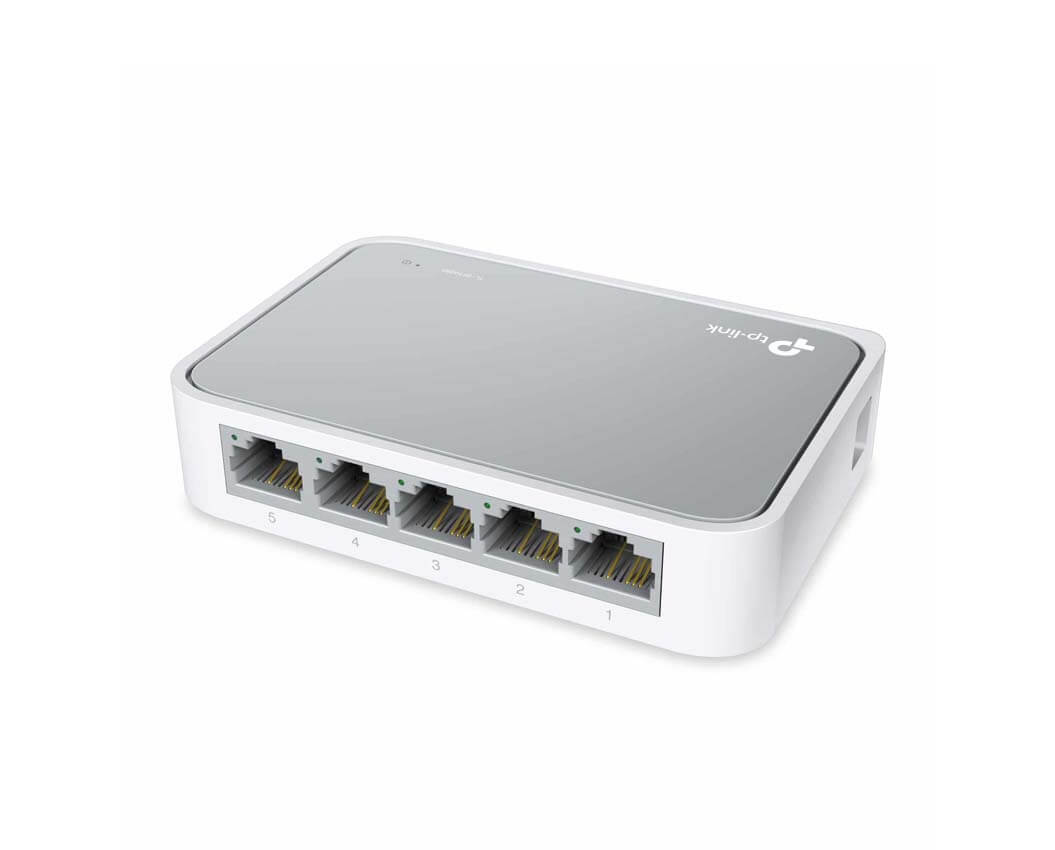

5-Port 10/100Mbps Desktop Switch
- 5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves the power up to 68%
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop design
- Plug and play, no configuration required
SPECIFICATIONS
| HARDWARE FEATURES | |
|---|---|
| Interface | 5 × 10/100Mbps RJ45 Ports Auto Negotiation / Auto MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter(Output: 5.0VDC / 0.6A) |
| Dimensions ( W x D x H ) | 4.1 × 2.8 × 0.9 in. (104 × 70 × 22 mm) |
| Max Power Consumption | 1.9W |
| Max Heat Dissipation | 6.4 BTU/h |
| SOFTWARE FEATURES | |
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology 802.3X Flow Control, Back Pressure |
| OTHERS | |
|---|---|
| Certification | FCC, RoHs |
| Package Contents | 5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
