Tech Specs
The product features and specifications are subject to change without prior notice
Technology
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0.55 inch with C2 Fine
Color Light Output
3,600 Lumen- 2,400 Lumen (economy) In accordance with IDMS15.4
White Light Output
3,600 Lumen In accordance with ISO 21118:2020
Resolution
XGA
Aspect Ratio
4:3
Native Contrast
16,000 : 1
Light source
Lamp
Lamp
UHE, 210 W, 6,000 h durability, 12,000 h durability (economy mode)
Keystone Correction
Auto vertical: ± 30 °, Manual horizontal ± 30 °
Colour Video Processing
10 Bits
2D Vertical Refresh Rate
100 Hz – 120 Hz
Colour Reproduction
Upto 1.07 billion colours
Optical
Throw Ratio
1.48 – 1.77:1
Zoom
Manual, Factor: 1.2
Projection Lens Zoom Ratio
1 – 1.2 : 1
Lens
Optical
Screen Size
30 inches – 300 inches
Projection Lens F Number
1.49 – 1.72
Projection Lens Focal Length
16.9 mm – 20.28 mm
Offset
8 : 1
Connectivity
USB Display Function
2 in 1: Image/ Sound

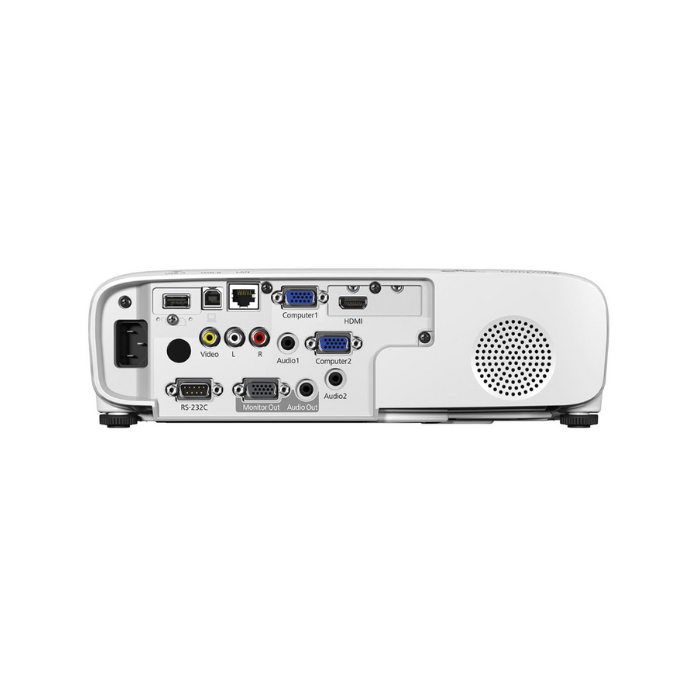

Interfaces
USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN a/n (5GHz) (optional), VGA in (2x), VGA out, HDMI in, Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, USB 2.0-A
Epson iProjection App
Ad-Hoc / Infrastructure
Network Protocol
PJLink
Advanced Features
Security
Kensington lock, Security cable hole, Wireless LAN unit lock
2D Colour Modes
Dynamic, Cinema, Presentation, sRGB, Blackboard
Other features
AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjection App, iProjection set-up by NFC, iProjecton set-up by QR code
Video Color Modes
Blackboard, Dynamic, Presentation, sRGB, Theatre
Projector control
via: AMX, Crestron, Control4, Extron
General
Power consumption
286 Watt – On mode power consumption (Normal)
327 Watt (Peak), 225 Watt (Eco), 0.3 Watt (Energy saving standby)
327 Watt (Peak), 225 Watt (Eco), 0.3 Watt (Energy saving standby)
Supply Voltage
AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions
302 x 249 x 87 mm (Width x Depth x Height)
Product weight
2.7 kg
Noise Level
Normal: 37 dB (A) – Economy: 28 dB (A)
Supported Temperature
Operation 5° C – 35° C, Storage -10° C – 60° C
Supported Humidity
Operation 20% – 80%, Storage 10% – 90%
Included Software
EasyMP Multi PC Projection, Epson Projector Management
Options
Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Suspension adapter, WP System – ELPWP20, Wireless LAN unit, Wireless transmitter – ELPWT01
Loudspeaker
5 Watt
What’s in the box
HDMI Cable 1.8m, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty card
Positioning
Ceiling Mounted, Desktop
Colour
White
Other
Warranty
36 months Carry in, Lamp: 36 months or 1,000 h
