Model name | HP LaserJet Pro MFP M227fdw Printer |
Product number | G3Q75A |
What’s included and accessories

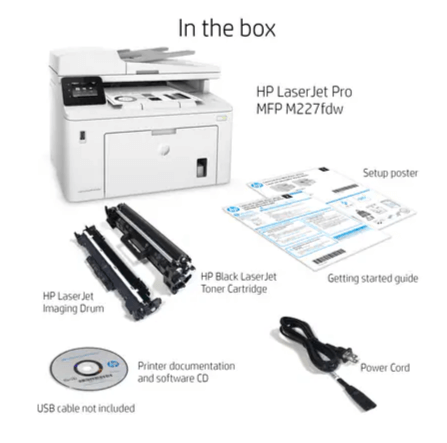

What’s in the box | HP LaserJet Pro MFP M227fdw; HP Black LaserJet Toner Cartridge; HP LaserJet Imaging Drum; Power cord; Getting Started Guide; Set Up poster; Printer documentation and software on CD-ROM |
Connectivity
Ports | 1 Hi-Speed USB 2.0; 1 Hi-Speed USB 2.0 (host); 1 Ethernet 10/100Base-TX; 1 phone line (in); 1 phone line (out) |
Wireless capability | Built-in Wi-Fi 802.11b/g/n |
Storage device and direct print support | USB printing; Front-facing USB printing; Wi-Fi Direct |
Copy
Copier settings | Number of Copies; Lighter/Darker; Optimize; Paper; Multi-Page Copy; Collation; Draft Mode |
Maximum number of copies | Up to 99 copies |
Copy reduce / enlarge settings | 25 to 400% |
Copy speed (black, normal) | Up to 30 cpm (Letter), 28 cpm (A4) |
Copy resolution | 600 x 600 dpi |
Environmental
Acoustic power emissions | 6.6 B(A) (printing at 28 ppm) |
Operating humidity range | 30 to 70% RH |
Storage humidity | 10 to 90% RH |
Recommended operating temperature range (Celsius) | 17.5 to 25ºC |
Recommended operating temperature range (Fahrenheit) | 63.5 to 77ºF |
Storage temperature range (Celsius) | -20 to 60ºC |
Storage temperature range (Fahrenheit) | -4 to 140ºF |
Environmental specifications | Mercury free |
Fax
Fax features | Fax address book; Speed-dial; fax billing codes; Fax archiving and forwarding; Block incoming faxes |
Fax resolution | Up to 300 x 300 dpi (halftone enabled) |
Fax memory | Up to 1,000 pages |
Telephone handset supported | No |
Fax telephone mode supported | Yes |
Modem | 33.6 kbps |
Speed dials, maximum number | Up to 120 numbers (119 group dials) |
Fax transmission speed | 3 sec per page |
Memory
Memory, standard | 256 MB |
Mobile printing capability
Mobile printing services | HP ePrint;Wi-Fi Direct printing; AirPrint 1.5 with media presence sensor; Google Cloud Print 2.0; NFC touch-to-print enabled |
Networking
Network protocols, supported | TCP/IP: IPv4; IPv6; IP Direct Mode; LPD; SLP; Bonjour; WS-Discovery; BOOTP/DHCP/AutoIP; WINS; SNMP v 1/2/3; HTTP/HTTPS |
Paper handling
Input capacity | Up to 260 sheets |
Input capacity, priority tray (envelopes) | Up to 10 |
Output capacity | Up to 150 sheets |
Media sizes supported (metric) | A4 |
Media sizes supported (U.S. standard) | Letter; Legal |
Media sizes, custom (U.S. standard) | 3 x 5 to 8.5 x 14 in |
Media types | Paper (laser, plain, photo, rough, vellum), envelopes, labels, cardstock, postcards |
Media weight supported (metric) | 60 to 163 g/m² |
Media weight supported (U.S. standard) | 16 to 43 lb |
Paper handling – ADF
Automatic document feeder capacity | 35 sheets of 75.2 g/m² (20 lb) plain paper |
Media size, ADF (metric) | A4 |
Media size, ADF (U.S. standard) | Letter; Legal |
Media weight supported, ADF (metric) | 70 to 90 g/m² |
Media weight supported, ADF (U.S. standard) | 18.5 to 24 lb |
Paper handling – duplexer
Recommended media weight, duplex (metric) | 60 to 105 g/m² |
Recommended media weight, duplex (U.S. standard) | 16 to 28 lb |
Media sizes, duplex (metric) | A4 |
Media sizes, duplex (U.S. standard) | Letter; Legal |
Physical dimensions
Maximum dimensions (W x D x H, metric) | 403 x 407.4 x 311.5 mm |
Maximum dimensions (W x D x H, U.S. standard) | 15.9 x 16 x 12.3 in |
Weight (metric) | 9.4 kg |
Weight (U.S. standard) | 20.7 lb |
Power
Energy savings feature technology | HP Auto-On/Auto-Off technology |
Power supply type | Internal |
Power supply | 110-volt input voltage: 110 to 127 VAC (+/- 10%), 60 Hz/50 Hz, 5.9 A; 220-volt input voltage: 220 to 240 VAC (+/- 10%), 60 Hz/50 Hz, 3.3A |
Power consumption | 475 watts (active printing), 4.5 watts (ready), 1.0 watts (sleep), 0.8 watts (Auto Off/Wake on USB, enabled at shipment) |
Print cartridges
Number of print cartridges | 1 Black cartridge, 1 drum |
Replacement cartridges | HP 30A Original Black LaserJet Toner Cartridge CF230A, HP 30X Original Black LaserJet Toner Cartridge CF230X, HP 32A Original LaserJet Imaging Drum CF232A |
Printing specifications
Print technology | Laser |
Duplex printing | Automatic (standard) |
Print resolution (best) | Up to 1200 x 1200 dpi |
Maximum print area (metric) | 214 x 356 mm |
Monthly duty cycle | Up to 30,000 pages |
Print languages | PCL5c; PCL6; PS; PCLm; PDF; URF; PWG |
Printer smart software features | AirPrint 1.5 with media presence sensor, Instant-on Technology, HP Auto-On/Auto-Off Technology, JetIntelligence cartridges, Mopria-certified, Wi-Fi Direct printing, Duplex printing |
Regulatory specifications
Regulatory model number | SHNGC-1503-02 |
Energy efficiency | ENERGY STAR certified; Blue Angel; EPEAT Silver |
Safety | IEC 60950-1:2005 +A1:2009+A2:2013/EN60950-1:2006 +A11:2009 +A1:2010+A12:2011+A2:2013; IEC 60825-1:2007 / EN 60825-1:2007 (Class 1 Laser/LED Product); IEC 62479:2010 / EN 62479:2010; GB4943-2011 |
Electromagnetic compatibility | CISPR 22:2008 / EN 55022:2010 – Class B, EN 61000-3-2:2006 +A1:2009 +A2:2009, EN 61000-3-3:2013, EN 55024:2010, FCC Title 47 CFR, Part 15 Class B / ICES-003, Issue 6, GB9254-2008, GB17625.1-2012 |
Telecom compliance (fax capability) | Wireless telecommunications: EU (R&TTE Directive 1999/5/EC, EN 301 489-1 V1.9.2, EN 301 489-17 V2.2.1, EN 300 328 V1.9.1; EN301 893 V1.8.1; US (FCC 15.247); Canada RSS-210, IEC 62311:2007, EN62311:2008; Fax Telecom: ES 203 021; R&TTE Directive 1999/5/EC (Annex II) with CE Marking (Europe); FCC Part 68; Industry Canada CS03; NOM-151-SCTI-1999 (Mexico); PTC-200 (New Zealand); other Telecom approvals as required by individual countries |
Scan
Scanner advanced features | Scan to email and network folders |
Scan technology | CIS |
Scan speed (normal) | Up to 15 ppm |
Scan resolution, hardware | Up to 300 x 300 dpi (color and mono, ADF); Up to 600 x 600 dpi (color, flatbed); Up to 1200 x 1200 dpi (mono, flatbed) |
Levels of grayscale | 256 |
Bit depth | 24-bit |
Maximum flatbed scan size (metric) | 215.9 x 297 mm |
Maximum flatbed scan size (U.S. standard) | 8.5 x 11.7 in |
Minimum ADF scan size (metric) | 148.5 x 210 mm |
Minimum ADF scan size (U.S. standard) | 5.85 x 8.27 in |
Maximum ADF scan size (metric) | 215.9 x 297 mm |
Maximum ADF scan size (U.S. standard) | 8.5 x 11.7 in |
Twain version | Version 1.9 (Legacy OS); Version 2.1 (Windows 7 or higher) |
Security
Security management | Password-protected network embedded Web server; enable/disable Network ports; SNMPv1 community password change |
System requirements
Minimum system requirements for Windows | Windows: 10, 8, 7 (32-bit or 64-bit): 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer; Windows Vista (32-bit only): 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8; Windows XP SP3 or higher (32-bit only): any Intel Pentium II, Celeron or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8 |
Minimum system requirements for Macintosh | OS X v10.11 (El Capitan), v10.10 (Yosemite), v10.9 (Mavericks): 1 GB available hard disk space, Internet required, USB |
Compatible network operating systems | Windows 10, 8, 7 (32-bit or 64-bit): 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer; Windows Vista (32-bit only): 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8; Windows XP SP3 or higher (32-bit only): any Intel Pentium II, Celeron or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8; OS X v10.11 (El Capitan), v10.10 (Yosemite), v10.9 (Mavericks): 1 GB available hard disk space, Internet required, USB; Linux |
Warranty
Warranty | One-year limited warranty |
